IMM Manipulator

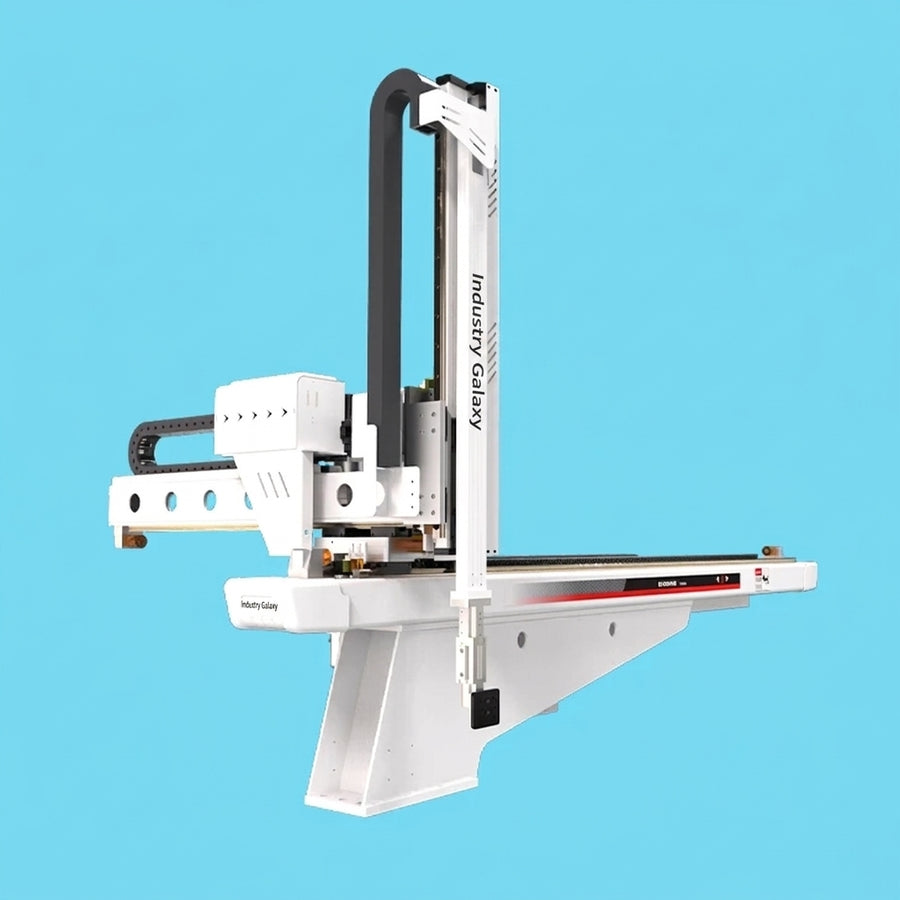

IG-3X Servo Manipulator
Overview
3-axis servo-driven take-out manipulator for injection moulding machines. Designed for high-speed part extraction from 50T to 350T machines. Pneumatic grippers with vacuum assist for reliable part handling.
Technical Specifications
| Axes | 3-Axis Servo |
| Machine Tonnage | 50T – 350T |
| Cycle Time | 3 – 6 sec |
| Payload | 3 kg |
| Reach | 800 mm |
| Repeatability | ±0.5 mm |
| Power | 1.2 kW |
| Controller | IG-3X Smart Control Series |
| Weight | 45 kg |
Applications
- Part extraction from horizontal IMMs (50T–350T)
- Sprue removal and separation
- Placing parts on conveyor belt
- In-mould labelling (IML) assist
Technical Specifications
Applications
✓
Part extraction from horizontal IMMs (50T–350T)
✓
Sprue removal and separation
✓
Placing parts on conveyor belt
✓
In-mould labelling (IML) assist
