IMM Manipulator

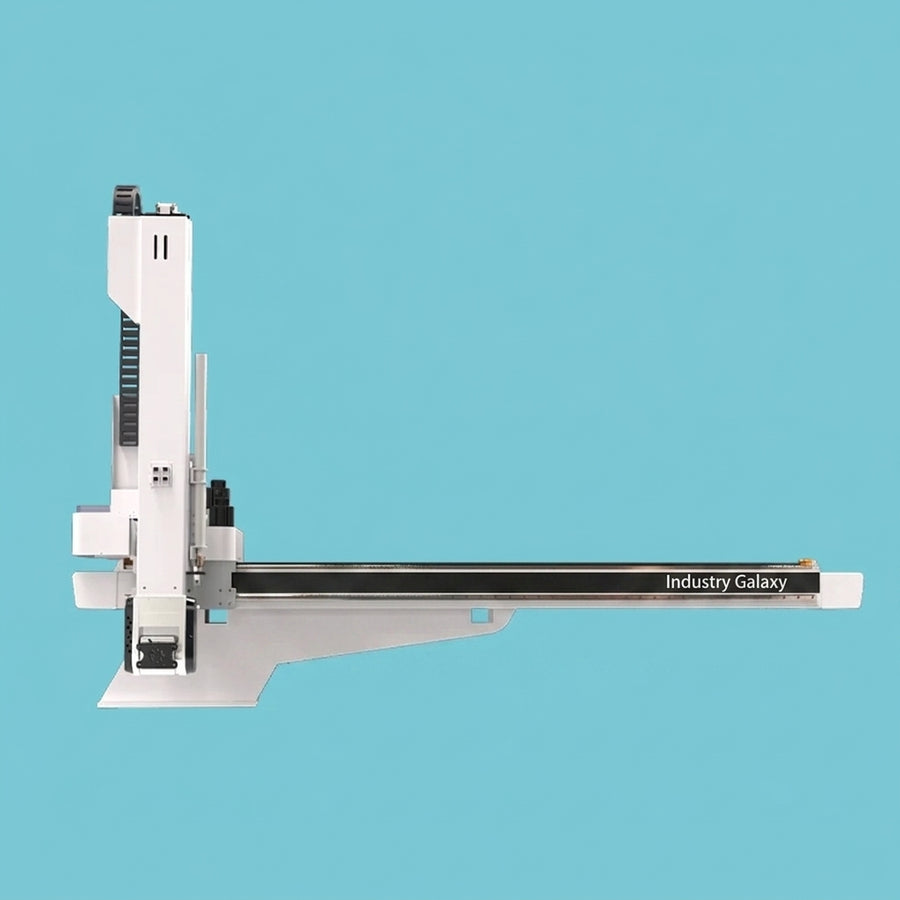

IG-5X Pro Servo Manipulator
Overview
5-axis servo manipulator with extended reach for large-tonnage injection moulding machines. Handles complex part extraction with multi-point gripping and rotation capability.
Technical Specifications
| Axes | 5-Axis Servo |
| Machine Tonnage | 250T – 1200T |
| Cycle Time | 4 – 8 sec |
| Payload | 12 kg |
| Reach | 1600 mm |
| Repeatability | ±0.3 mm |
| Power | 2.5 kW |
| Controller | IG-5X Smart Control Series |
| Weight | 120 kg |
Applications
- Large part extraction from 250T–1200T IMMs
- Multi-cavity mould handling
- Insert loading and part extraction
- Downstream operations (trimming, stacking)
Technical Specifications
Applications
✓
Large part extraction from 250T–1200T IMMs
✓
Multi-cavity mould handling
✓
Insert loading and part extraction
✓
Downstream operations (trimming, stacking)
Request a Quote
Get pricing and lead time for IG-5X Pro Servo Manipulator
