CNC Cobot

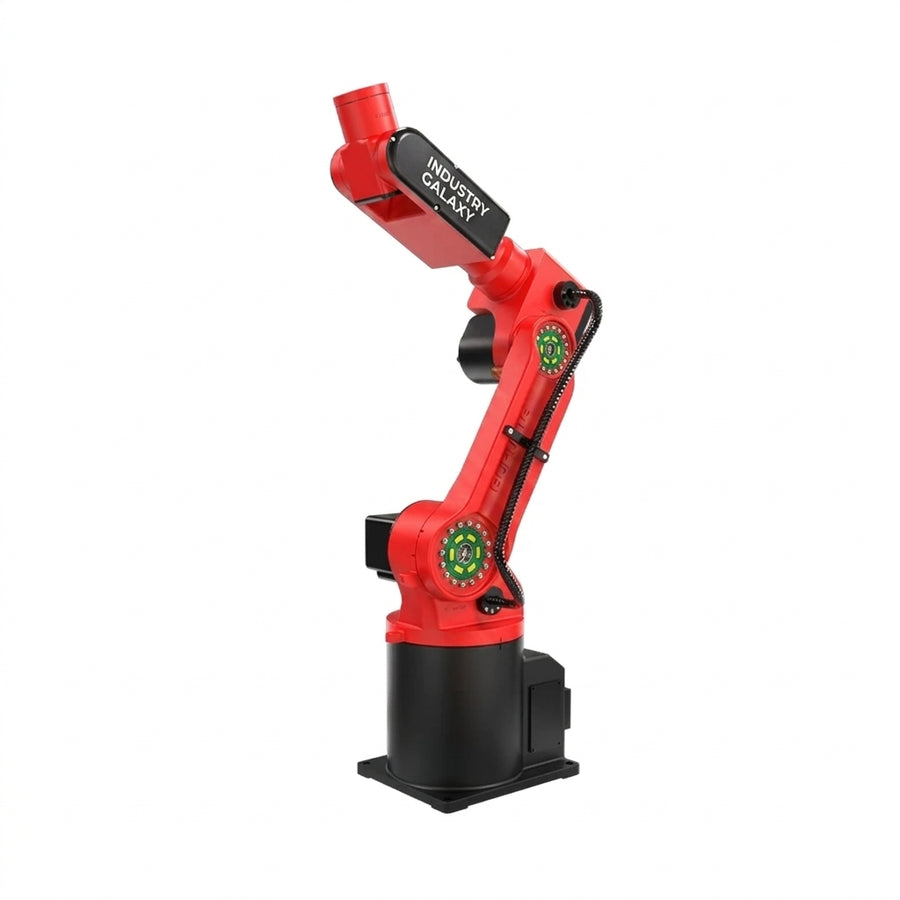

IG-C7 CNC Tending Cobot
Overview
6-axis collaborative robot optimized for CNC machine loading and unloading. 7 kg payload with ±0.03 mm repeatability. Compact footprint designed to fit next to any standard CNC lathe or VMC.
Technical Specifications
| Axes | 6-Axis |
| Payload | 7 kg |
| Reach | 700 mm |
| Repeatability | ±0.03 mm |
| Cycle Time | 6 – 12 sec (load/unload) |
| Weight | 28 kg |
| Power | 0.8 kW |
| Controller | IG-C7 Smart Control Series |
| Ip Rating | IP54 |
Applications
- CNC lathe loading/unloading
- VMC (Vertical Machining Center) tending
- Part inspection and gauging
- Bin picking for machined parts
Technical Specifications
Applications
✓
CNC lathe loading/unloading
✓
VMC (Vertical Machining Center) tending
✓
Part inspection and gauging
✓
Bin picking for machined parts
Request a Quote
Get pricing and lead time for IG-C7 CNC Tending Cobot
