Spraying Robot

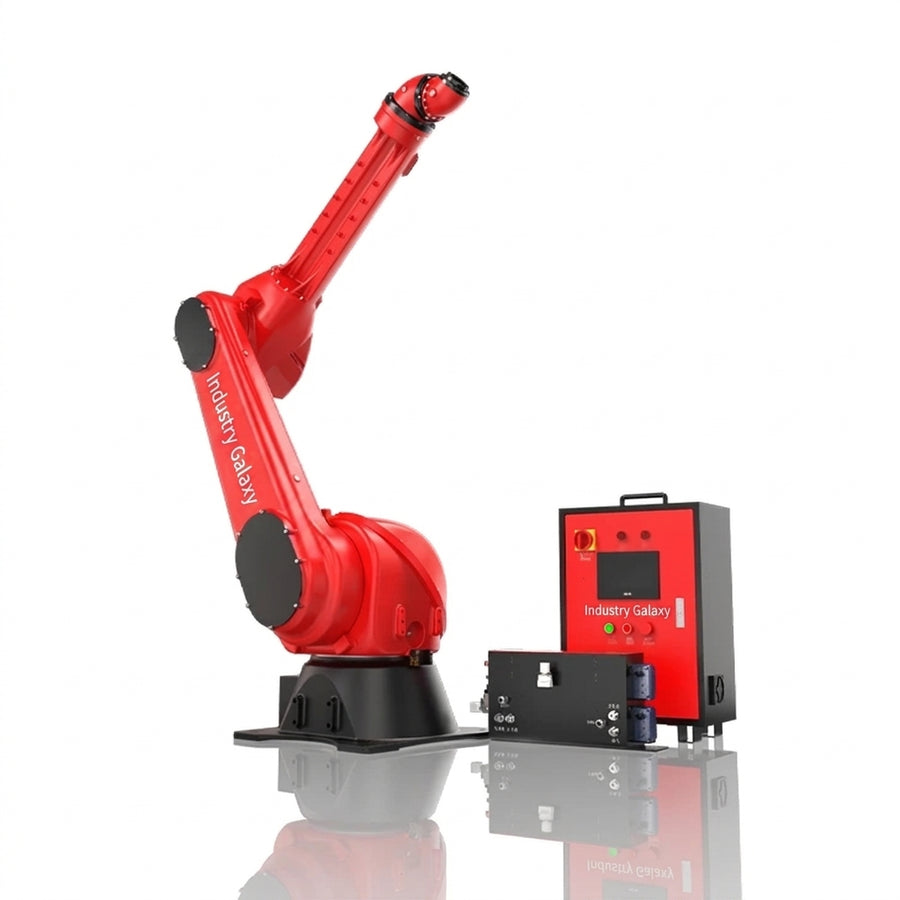

IG-P10 Spraying Robot
Overview
6-axis articulated explosion-proof industrial spraying and painting robot. ATEX/IECEx certified for safe operation in volatile solvent environments. Wide operating range and high path accuracy for consistent finish quality on complex 3D parts.
Technical Specifications
| Axes | 6-Axis |
| Payload | 10 kg |
| Reach | 1500 mm |
| Repeatability | ±0.05 mm |
| Explosion Proof | ATEX / IECEx Certified (Class I, Div 1) |
| Weight | 145 kg |
| Power | 3.0 kW |
| Controller | IG-P10 Smart Paint Series |
Applications
- Liquid painting on automotive bodies and parts
- Powder coating on metal sheets and enclosures
- Glazing and coating on ceramic components
- Anti-corrosion spraying on structural frames
Technical Specifications
Applications
✓
Liquid painting on automotive bodies and parts
✓
Powder coating on metal sheets and enclosures
✓
Glazing and coating on ceramic components
✓
Anti-corrosion spraying on structural frames
